New super bright recessed led down light COB 5w 7w 9w 12w led celling lamp AC 110V 220V Led light downlight
led downlight specification:
| Model No. | YN-D7W |
| Power (W) | 3W,5W,7W,9W,12W,15W,18W |
| Luminous Flux(lm) | 240~1400 |
| Product type | LED light downlight |
| Materail | Alminum+PMMA |
| Light source | LED |
| Color rendering index | Ra>85 |
| IP code | IP44 |
| Color Temperature(CCT) | W,WW,R,G,B,CW |
| Warranty | 3 years |
| LED Chip | EPISTAR |
| Emergency function | Optional |
| Certificate | CE, ROHS |
| Input wattage | AC85-265v |
| Rated life | 50000hours |
| Brand | YN lighting |
| Application | office, supermarket, hotel, factory, indoor, etc |
| Lifespan | >50000hrs |
A series of led light downlight for your reference:
| Power | Light source | Lumen | CRI | Model size (mm) | Cut-out size (mm) | Voltage |
| 3w | SMD5730 | 240lm | 75 | Φ100*H30 | Φ75 | AC85-265/50-60HZ |
| 5w | SMD5730 | 400lm | 75 | Φ118*H35 | Φ85 | AC85-265/50-60HZ |
| 7w | SMD5730 | 560lm | 75 | Φ128*H35 | Φ85 | AC85-265/50-60HZ |
| 9w | SMD5730 | 720lm | 75 | Φ140*H40 | Φ115 | AC85-265/50-60HZ |
| 12w | SMD5730 | 960lm | 75 | Φ140*H40 | Φ115 | AC85-265/50-60HZ |
| 15w | SMD5730 | 1200lm | 75 | Φ177*H40 | Φ150 | AC85-265/50-60HZ |
| 18w | SMD5730 | 1440lm | 75 | Φ188*H40 | Φ160 | AC85-265/50-60HZ |
led light downlight photos:
Muti-angle display of led light downlight:
Led light downlight feature:
3w/5w/7w/9w/12w/15w/18w led light downlight
1. Wide available input voltage AC85-265V/50-60HZ .
2. led chip made by our own factory, each power highly up to 95-105lm/w
3. All-in-on heavy aluminum housing. The heat dissipation is more than others aluminum housing.
4. Beam angle: 15degree,24degree,35degree
5.Cut-out size:Φ75,Φ85,Φ115,Φ150,Φ160
6. Top quality with CE ROHS certificate
Application:
1.Hotels /Department
2.Conference / Meeting rooms
3.Factories & Offices
4.Commercial Purposes.
5.Residential / Institution Buildings
6.Schools, Colleges & Universities,Museum.
7.Hospitals

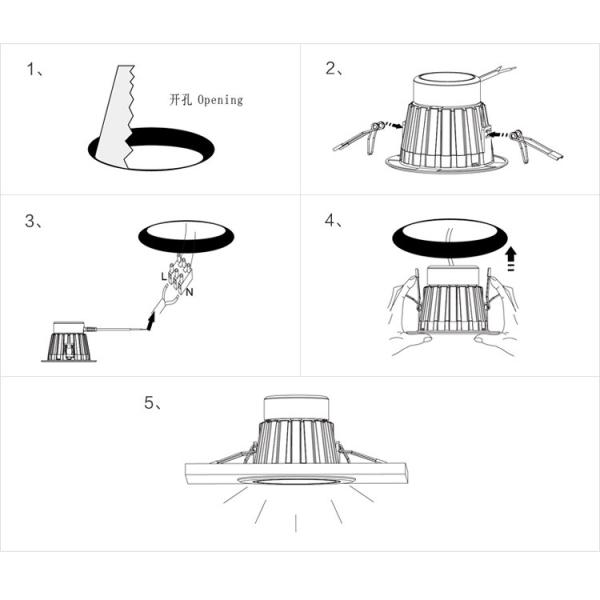

How to install:
